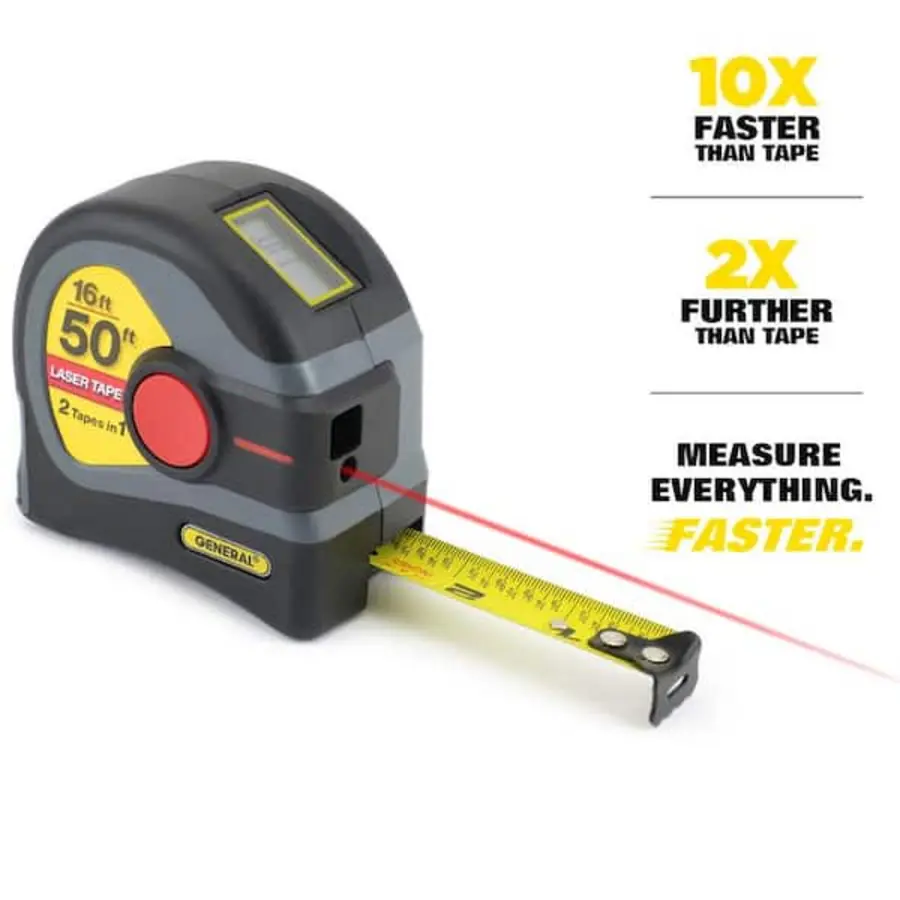

A laser measuring tape can remain inaccurate after calibration because calibration is only one part of the measurement system. The most common cause is a reference-point mismatch: the tool may be measuring from its front, rear, fold-out end piece, or another selected datum while you are comparing it with a measurement taken from a different point.
Before calibrating again, repeat the measurement against a known distance and keep the same reference point, tool position, target, and measuring direction for every test. If the error disappears after correcting the setup, the laser unit was not necessarily out of calibration. If the error remains consistent under controlled conditions, check the model-specific settings and inspect the tool for damage before arranging service or replacement.
Start by identifying the type of error
The pattern of the error is more useful than one questionable reading.
The reading is off by the same amount every time
A steady difference, such as every measurement being longer or shorter by roughly the same amount, usually points to the selected reference point or an entered offset. For example, measuring from the rear of the housing while the tool is set to measure from its front can produce a repeatable error close to the body length.
Check whether the tool has settings for:
- Front, rear, end-hook, or fold-out reference point
- A stored reference offset or correction value
- Continuous, single-shot, indirect, area, or volume mode
- Units and fractional display format
- A measurement taken from an accessory, bracket, tripod mount, or extension
Use the current manual for your exact model to confirm what each reference icon means. Names and symbols vary between manufacturers, and some tools automatically change the reference point when an end piece is unfolded.
The error gets larger as distance increases
An error that grows over a longer run is less likely to be a simple front/rear reference setting. Check the known standard used for comparison, the alignment of the tool, and whether the beam is reaching a suitable target.
A long-distance comparison made with a bent, worn, or poorly checked tape measure is not a reliable calibration test. Professional tape calibration compares instruments against traceable standards over their working range rather than relying on one casual measurement. NIST describes the use of laser interferometry for precision length measurement, and calibration laboratories similarly evaluate measuring tools against defined reference standards and specifications.
The reading changes from one shot to the next
Variable readings usually indicate setup or target trouble rather than a simple calibration offset. Recheck the tool’s position, hold it still, and measure a flat, solid target directly in front of the beam. A shiny, angled, transparent, highly textured, narrow, or moving surface can make it difficult to obtain a consistent result.
Verify the laser measuring tape against a known distance
Do not use a doorway, room dimension, or a second unverified tape as your only standard. Choose a stable distance that can be checked independently and repeated exactly.
Set up a controlled test
- Choose two solid, fixed surfaces with flat faces, such as a wall and a rigid stop.
- Establish a known distance using a reference you trust. For work requiring documented accuracy, use a suitable traceable standard or a calibration service rather than an ordinary jobsite tape.
- Place the laser tool firmly against the same starting surface for every reading.
- Set the intended reference point, usually the rear of the tool when it is held against a stop.
- Aim the beam squarely at a clean, flat target surface.
- Take several readings without changing the setup.
- Record the displayed value, the known distance, the selected reference point, and the direction and size of any difference.
Repeat the check at more than one distance if practical. A tool that agrees at a short distance but diverges at a longer distance needs further evaluation. A tool that is consistently shifted by one fixed amount needs its reference-point setting and any offset setting checked first.
Check the reference point before changing calibration
A laser distance tool measures from a defined physical point on the body, not necessarily from the point that looks intuitive to the user. Some models default to the rear edge; others allow a front edge, a rear edge, or an extended end piece.
Measure the physical body length of the tool only if needed to diagnose an offset. Then compare that dimension with the amount of error. If the difference closely matches the tool body length or a deployed end piece, the selected reference is the likely problem.
Also confirm that the tool is seated where you think it is. A small gap behind the housing, a rounded molding, loose trim, a protruding button, or a hand holding the tool away from the surface changes the actual start point.
Rule out target and alignment problems
The laser needs a usable return from the target. A reading can be unreliable when the beam lands on:
- Glass, water, or another transparent surface
- A mirror, polished metal, or a strongly reflective surface
- Dark or absorbent material at a long distance
- A corner, edge, gap, or narrow object
- A rough surface with deep texture
- A target at a steep angle to the beam
For troubleshooting, use a light-colored, matte, flat target positioned as squarely as possible to the beam. If the tool works correctly on that test target but not in the original location, the original target or angle is the issue.
Avoid trying to judge accuracy by whether the visible laser dot appears to line up with a tape mark. The visible dot shows where the beam lands; it does not by itself prove which point on the housing the instrument uses as its measurement datum.
Inspect the tool and clean the measuring path
A dropped or heavily used measuring tool may need inspection even if it still powers on and produces a laser. Manufacturers of other laser layout tools likewise caution that impact and heavy use can affect accuracy and recommend checking calibration before relying on the tool for marking work. Kapro outlines field checks for laser-level calibration.
Inspect the laser measuring tape for:
- Cracks, loose housing parts, or a damaged end piece
- A lens window that is dirty, scratched, cloudy, or loose
- Buttons that do not reliably select the displayed setting
- A bent, loose, or damaged physical tape if the product combines a laser with a conventional tape
- A tool that rocks instead of sitting flat against a reference surface
Clean the lens only as the manufacturer directs. Do not scrape it with a blade, abrasive pad, or solvent not approved in the manual. If the physical tape is part of your comparison method, inspect it as well; cleaning and checking for visible damage are sensible first steps before relying on a tape for accuracy work. Lixer Tools describes this basic inspection approach.
Confirm the calibration procedure was the correct one
Some laser measuring tapes allow a user offset or field adjustment. Others do not provide true user calibration; they may only allow a reference-point selection, reset, or confirmation check. Entering a correction when the actual issue is a wrong datum can make every future measurement worse.
Before changing any calibration value, verify in the current manufacturer manual:
- Whether the model supports user calibration or only an accuracy check
- The required test distance and target conditions
- The permitted adjustment range and increment
- Whether calibration applies to laser distance, the physical tape, or both
- The factory-reset procedure and whether it clears stored offsets
- The published accuracy specification and operating conditions
If you have already changed an offset and no longer know the original setting, use the manufacturer-approved reset procedure if one is provided. Then repeat the controlled known-distance test before entering any new correction.
When the comparison tool may be the problem
A conventional tape measure is useful for ordinary layout, but it is not automatically a calibration standard. Its hook movement, bent blade, damaged graduations, temperature, tension, support, and reading technique can all affect a comparison.
To verify tape measure accuracy, use a checked reference or have the tape evaluated through an appropriate calibration process when the work demands it. Accredited calibration services describe testing instruments against traceable references and relevant specifications, rather than treating one field comparison as conclusive. ACS Calibration describes this type of tape-measure service.
For everyday work, the practical goal is agreement between a trusted reference and the laser tool within the manufacturer’s stated tolerance. For fabrication, inspection, or contract work with defined tolerances, follow the applicable quality procedure and use an appropriate calibration provider.
When to seek manufacturer service or replace the tool
Contact the manufacturer or an authorized service provider when the tool fails a controlled check after you have confirmed the reference setting, target, test setup, and comparison standard. Service is especially appropriate if the tool was dropped, has a damaged lens or housing, cannot hold a stable reading, will not retain settings, or produces an error that changes unpredictably.
Replacement is often the practical choice for a lower-cost unit that is physically damaged or cannot be serviced. Do not compensate for an unexplained error by mentally adding or subtracting a number during important work. A correction is only defensible when it is supported by a repeatable check and allowed by the manufacturer’s procedure.
Quick troubleshooting checklist
- Test against a stable known distance, not only another unverified tape.
- Use the same physical start point for the laser and the reference measurement.
- Confirm the front, rear, or end-piece reference setting.
- Remove any accidental stored offset or use the approved reset process.
- Measure a flat, matte target at a near-square angle.
- Repeat several readings without moving the tool.
- Inspect the lens, housing, end piece, and any physical tape for damage.
- Check the current manual before attempting a calibration adjustment.
- Seek service if controlled tests still show an error outside the manufacturer’s stated tolerance.
