Cutting an electrical box opening in cinder block usually calls for a masonry-rated diamond blade and a controlled sequence of shallow perimeter cuts, followed by careful removal of the waste. The right method depends on whether you need a shallow recess for a surface-mounted installation, a larger existing opening, or a full opening through the wall. Those are not interchangeable jobs.
For a typical recessed box, the practical tool is often an angle grinder or compact concrete-cutting saw with a diamond masonry blade, used only after you confirm the wall is not structural, prestressed, utility-filled, or otherwise unsuitable for cutting. Control silica dust with water-fed cutting or a compatible dust-extraction system, and stop if you find reinforcement, conduit, unusual voids, or a utility line.
First, define the opening you actually need
Before choosing a masonry box opening tool, identify the installation type. Cutting too deeply—or cutting through a block wall when a shallow recess would work—can create an unnecessary structural, weatherproofing, and electrical problem.
Surface recess in the face of block
A shallow recess removes only enough of the block face to let a box or mounting component sit closer to flush. This is the least invasive option, but it still may weaken the block face if the recess is too large or placed near an edge, corner, opening, or damaged area.
Use this approach only when the chosen electrical box is listed and intended for the installation conditions. Exterior, wet-location, fire-rated, and masonry-wall applications can have different requirements. Confirm the box type, fastening method, cover, conduit entry, grounding, box fill, and local code requirements before cutting.
Enlarging an existing opening
If a block already has an opening, remove only the material needed to fit the approved box or conduit arrangement. Small adjustments may be manageable with shallow saw cuts and hand tools. Do not assume an existing hole was properly located or that it is safe to enlarge; inspect for embedded conduit, wiring, pipes, reinforcement, and cracking first.
Opening through the wall
A through-wall cut is a different category of work. It can affect load paths, reinforcement, fire separation, moisture control, insulation, and exterior finishes. It may also expose you to utilities on either side of the wall.
Do not cut a full opening through a foundation wall, retaining wall, load-bearing masonry wall, reinforced or grouted block wall, or wall with uncertain construction without guidance from a qualified masonry professional or structural engineer. Use a licensed electrician when the electrical work requires a permit, new branch-circuit wiring, service equipment changes, or code interpretation.
Choose the cutting tool by the job
A diamond blade designed for masonry is the usual cutting accessory for concrete block. The tool must be approved by its manufacturer for the blade diameter, arbor, guard, cutting application, and dust-control arrangement. Do not fit a blade to a tool unless the current tool and blade documentation allows it.
Angle grinder with a diamond blade
An angle grinder is useful for shallow, straight perimeter cuts and for enlarging a small opening. It is relatively maneuverable, but it produces substantial dust and leaves rounded inside corners because the blade is circular.
Choose this method when you need a modest recess or a carefully enlarged opening and can maintain stable footing, a guarded tool, proper dust control, and clear control of the work area. Avoid forcing the cut or twisting the blade in the kerf. Handheld masonry saws can kick back, push back, or pull in when the blade binds, according to masonry-saw safety guidance. OSHA Safety Manuals
Handheld concrete-cutting saw
A dedicated concrete-cutting saw is more appropriate when the planned cut is deeper than a grinder can make safely and effectively. It is generally better suited to repeated or deeper perimeter cuts, but it demands more space, control, and dust management.
For a box-sized opening, make several controlled passes rather than trying to reach full depth in one aggressive cut. Follow the saw maker’s instructions for maximum cut depth, water delivery, blade use, guarding, electrical supply, and required protective equipment.
Rotary hammer with masonry bit and chisel function
A rotary hammer can drill corner holes or remove material inside an already-cut perimeter. It is not the best tool for establishing a clean, accurate rectangle by itself. Hammering can also crack thin block faces or break away more material than intended.
Use it as a secondary removal tool only after verifying the wall and layout. Keep the chisel action inside the cut lines, work gradually, and stop if cracks travel beyond the intended opening.
Hammer and masonry chisel
Manual chiseling can be suitable for tiny adjustments, cleaning corners, or breaking out thin residual material after saw cuts. It is slow but gives good control for final fitting.
A manual chisel is not a substitute for assessing structural risk. It can still damage the block shell, fracture mortar joints, or dislodge material unexpectedly.
Plan the opening before you cut
Measure the box body and required mounting arrangement, then transfer those dimensions to the wall. Do not size the opening from the decorative wall plate; the plate is normally larger than the box and is meant to cover a finished edge.
Check the wall and both sides of it
Inspect the opposite side of the wall where accessible. Look for existing electrical equipment, plumbing, gas piping, HVAC components, wall penetrations, water damage, cracks, repairs, and patched areas.
Do not rely on a basic stud finder to clear a masonry wall. Before cutting, determine whether electrical, gas, water, or other utility lines could be within the cutting zone. Masonry-saw safety guidance specifically warns workers to ensure there are no gas or electric utility lines embedded in the cutting area. OSHA Safety Manuals
If the area may contain energized electrical wiring, turn off the relevant circuit and verify the condition with appropriate test equipment. If you cannot confidently identify what is inside the wall, stop and bring in a qualified electrician or utility-location professional.
Avoid risky locations
Do not casually cut near lintels, beam pockets, corners, door and window openings, large cracks, or areas where block cells may be grouted or reinforced. Avoid removing a large part of a block face shell or web without professional direction.
A block wall may be structural even when it looks ordinary. If the wall supports a roof, floor, another wall, soil, or a significant exterior load, treat any new opening as a professional evaluation issue.
Mark the cut lines
Trace the planned box-body opening with a straightedge and level. Confirm its height, orientation, and clearance for conduit or cable before cutting. Keep the layout slightly conservative: you can enlarge an opening, but restoring removed masonry is more involved.

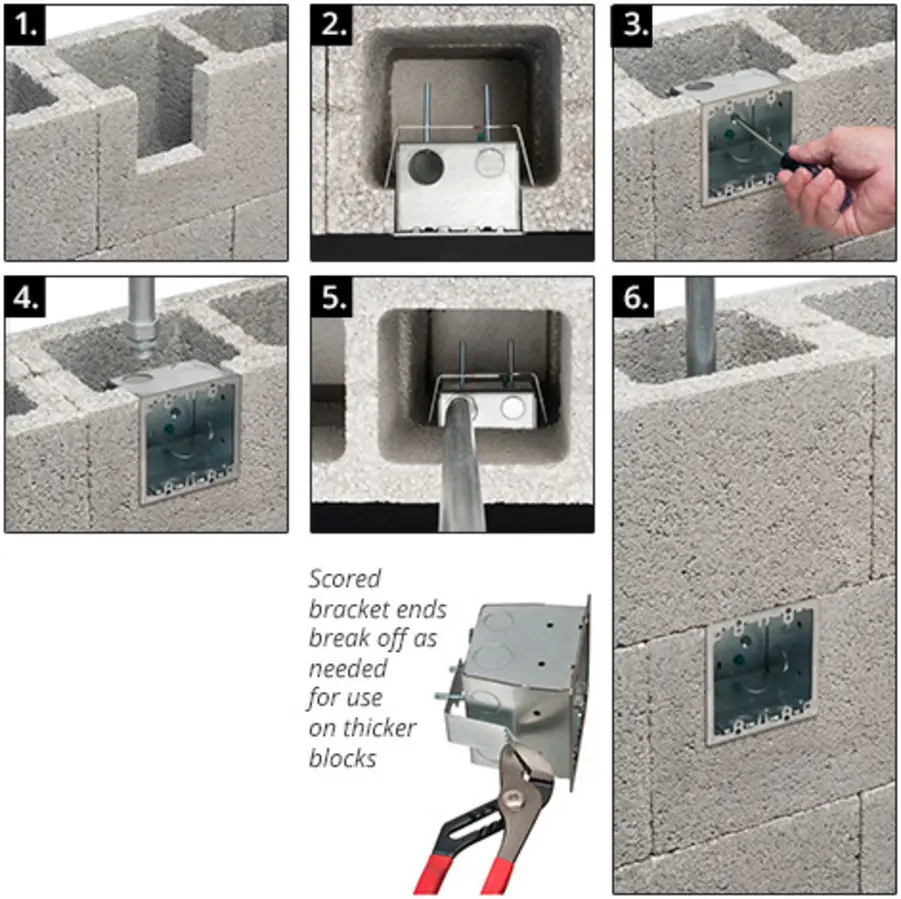

A controlled method for cutting a recessed box opening
This sequence is intended for a small, nonstructural recess or limited opening in ordinary concrete masonry, after the wall has been cleared for cutting. It is not a substitute for a permitted electrical installation or a structural assessment.
1. Set up dust control and containment
Concrete and masonry cutting can release respirable crystalline silica. OSHA identifies concrete and masonry sawing, grinding, drilling, and chipping as silica-generating work, and notes that wet methods can reduce airborne dust. OSHA silica construction information
Prefer a saw with integrated water delivery when the tool and work setting permit it. For grinding, use a compatible shroud and dust-extraction system when specified by the tool manufacturer. Keep electrical connections, extension cords, and water-management equipment suitable for wet work; verify the current manuals rather than improvising a water setup.
Protect nearby finishes and isolate the work area from occupants. Do not dry-cut masonry indoors with only a disposable dust mask and a household vacuum.
2. Make shallow perimeter passes
With the wall marked, cut along the perimeter in shallow passes. Let the blade do the work and keep the tool aligned with the cut. Do not plunge farther than the tool and blade are designed to cut, and do not defeat or remove the guard.
For a shallow recess, stop at the planned depth. For a deeper opening in nonstructural block, repeat the perimeter passes progressively rather than attempting a single full-depth cut.
3. Drill relief holes if needed
Drilling small masonry holes near the corners, within the waste area, can help define the corners and reduce breakout when removing the center. Keep holes inside the intended opening so they do not enlarge the finished perimeter.
This is especially useful because circular blades cannot leave perfectly square inside corners. Finish corners gradually with a hand chisel if the box shape requires it.
4. Remove the center carefully
Break out the center material in small sections with a rotary hammer set appropriately for the task or with hand tools. Work from the middle toward the saw-cut edges. Do not pry aggressively against a thin block face or force a large chunk out at once.
If the block begins cracking outside the cut lines, if a face shell starts separating, or if you uncover reinforcement or an unexpected filled cell, stop work. The opening may need a different box location or a masonry repair plan.
5. Test-fit without forcing the box
Vacuum or wet-clean loose debris using a method appropriate for silica-containing dust. Test-fit the box body and confirm that it sits as planned without stressing the block edges.
Do not use an oversized opening as a reason to pack around a box with random wood scraps, loose mortar, foam, or unapproved fillers. Select a fastening and box system appropriate for masonry and the electrical installation. A licensed electrician can determine the required box volume, wiring method, grounding provisions, and support method.
Dust control is part of the tool choice
Masonry dust is not merely a cleanup issue. Concrete block contains silica-bearing material, and dry cutting can put fine dust into the air throughout a building.
Handheld power saws used on masonry are commonly controlled with water delivered to the blade, while grinder work commonly relies on a compatible shroud and commercial dust collection under OSHA’s construction silica control approach. Silica dust control overview
Use the dust-control method specified for the exact tool and task. A wet-cutting setup is not automatically appropriate indoors, near live electrical equipment, or where runoff can damage finishes or create a slip hazard. A vacuum must be suitable for fine masonry dust and used as directed; a standard household vacuum can leak fine dust back into the space.
Wear the protective equipment required by the tool manufacturer and appropriate to the work, including eye protection and hearing protection. For respiratory protection, verify the correct protection level, fit requirements, and current official workplace or local guidance for the task. Do not treat a basic nuisance-dust mask as a complete silica-control plan.
Common mistakes to avoid
Cutting before confirming box type
Choose the electrical box and installation method first. A surface-mounted box with conduit may avoid a structural masonry cut entirely. In some situations, that is the cleaner and safer solution.
Making the hole based on the cover plate
The cover plate hides a small gap; it does not make an incorrectly sized or unsupported opening acceptable. Measure the actual box, its mounting ears or brackets, and its required clearance.
Cutting through both block faces unnecessarily
Concrete masonry units often have hollow cells. A recess in one face, a partially opened cell, and a full penetration are materially different conditions. Remove no more masonry than the selected installation truly needs.
Forcing a binding blade
Binding can lead to loss of control. Keep cuts straight, use successive passes, support your stance, and stop the tool before investigating a jammed blade. The tool’s guard and approved blade arrangement must remain in place. OSHA Safety Manuals
Ignoring cracks and loose block
Existing cracks, spalls, loose mortar, or hollow-sounding areas may signal that the location is unsuitable. A new opening can turn a minor defect into a larger repair.
When to call a professional
Hire a qualified mason, concrete-cutting contractor, structural engineer, or licensed electrician when any of these conditions apply:
- The wall may be load-bearing, reinforced, grouted, retaining soil, or part of a foundation.
- The planned opening crosses more than a small portion of a block or requires cutting through the wall.
- You find rebar, filled cells, conduit, cable, pipe, gas service, or an unknown obstruction.
- The work is near a door, window, corner, lintel, beam, service panel, or major crack.
- The installation requires new circuit wiring, exterior weatherproofing, fire-rated construction, or permit review.
- You cannot provide effective dust control or safely manage water, runoff, and electrical supply.
The safest answer is often not a more powerful saw. It may be a surface-mounted electrical solution, a different box location, or professional cutting and electrical installation.
Bottom line
For a small electrical box opening in nonstructural cinder block, use a masonry-rated diamond blade to make shallow, controlled perimeter cuts, then remove the center gradually and finish the corners carefully. Select the tool around the required depth and access, not around the biggest tool available.
Before any cut, verify the wall is appropriate to alter, clear the location for hidden utilities, plan silica-dust control, and confirm the electrical box and mounting method. When the opening affects a structural wall or involves uncertain utilities or wiring, stop and get qualified help.
References
- Mastering Concrete Cutting: A Step-By-Step Guide To Slicing Cinder Blocks | ShunTool. (n.d.). https://shuntool.com/article/how-to-cut-concrete-cinder-block
- Cutting Concrete: Opening Block With Precision | ShunTool. (n.d.). https://shuntool.com/article/how-to-cut-an-opening-in-concrete-block
- OSHA’s Silica Rule Enforcement. (n.d.). https://www.floridaroof.com/OSHA-s-Silica-Rule-Enforcement-1-21617.html
- Silica Dust Safety: OSHA Compliance for Contractors. (n.d.). https://projul.com/blog/construction-silica-dust-guide
- Masonry and Concrete Saws | OSHA Safety Manuals. (n.d.). https://www.safetymanualosha.com/masonry-and-concrete-saws
- Controlling Respirable Crystalline Silica in Construction. (n.d.). https://www.youtube.com/watch?v=Eu0s4-ZLw9I
- Silica, Crystalline - Occupational Exposure to Respirable Crystalline Silica 29 C.F.R. § 1926.1153 | Occupational Safety and Health Administration. (n.d.). http://www.osha.gov/silica-crystalline/construction-info
- 1910.303 - General. | Occupational Safety and Health Administration. (n.d.). http://www.osha.gov/laws-regs/regulations/standardnumber/1910/1910.303
- Essential NEC Standards for Electrical Boxes. (n.d.). https://www.partmfg.com/essential-nec-standards-for-electrical-boxes
- Extending Electrical Boxes Safely NEC Guidelines Explained. (n.d.). https://www.youtube.com/watch?v=fwKDrbfWSNQ
