A drill chuck that sticks usually needs debris removed before it needs lubricant. Open the jaws as far as they will safely go, clean away visible dust and chips, and work the chuck by hand several times. Keep oil, grease, and spray lubricants off the jaw faces and off any drill bit shank that must be gripped.

If the chuck still will not tighten or loosen after basic cleaning, stop forcing it. A jammed bit, damaged jaws, a worn chuck key, an internal failure, or a problem with the drill’s chuck mounting can require service or chuck replacement. Check the current manual for your drill before using cleaning products, removing the chuck, or attempting repairs.

Start by making the drill safe to handle

Set the drill aside and isolate it from its power source as directed by its current manufacturer manual. Remove any bit if the chuck will release it normally. If a bit is trapped, do not run the drill while holding the chuck or use the motor to try to shock the chuck free.

Inspect the exterior before cleaning. Look for packed sawdust, drywall dust, metal chips, rust, impact damage, cracked sleeve sections, or jaws that are uneven when viewed from the front. Also look at the bit shank. A bent, mushroomed, heavily rusted, or damaged shank can bind in the jaws.

Clean a sticking keyless drill chuck

A keyless chuck has an outer sleeve that is turned by hand to move the jaws. The useful maintenance goal is to remove loose contamination from accessible areas, not to flood the chuck with lubricant or take it apart.

1. Open the jaws as far as practical

Turn the sleeve by hand in the opening direction. If it moves only partway, do not clamp it with pipe wrenches or crush it with locking pliers. Excess force can damage the sleeve, distort the chuck, or make a removable bit harder to release.

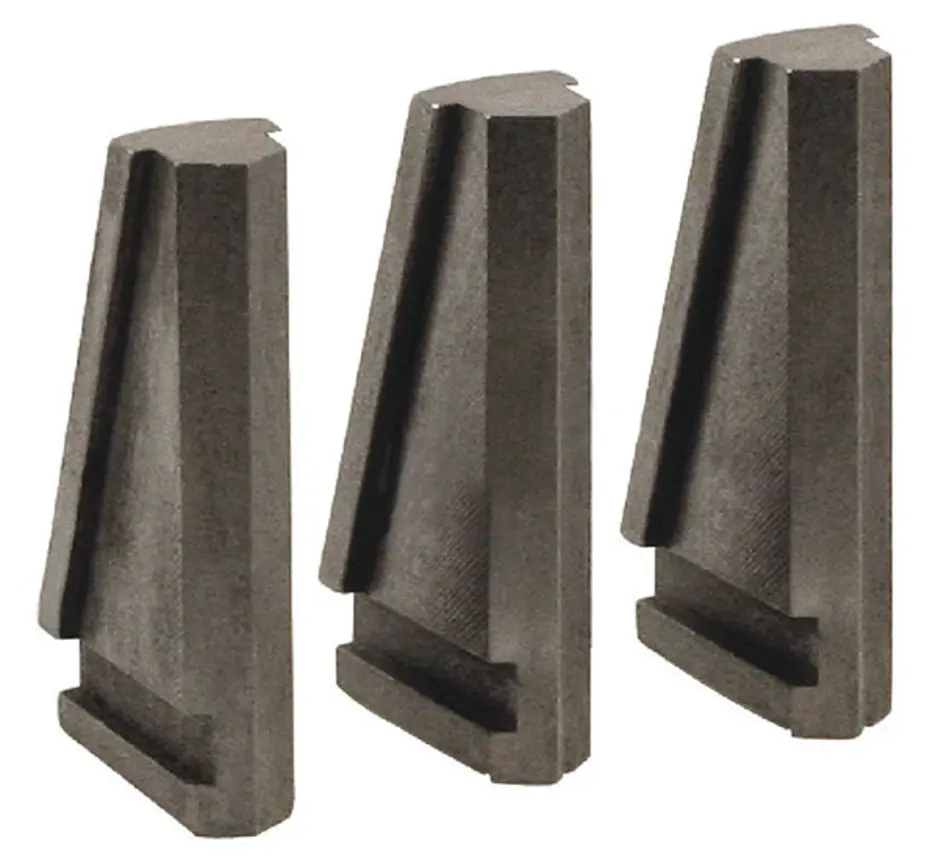

When the jaws are open, check whether all three jaws move evenly. One jaw sitting noticeably ahead of the others can indicate a jam or internal damage rather than ordinary dirt.

2. Brush out accessible debris

Use a clean, dry brush to remove loose debris from the jaw opening, the spaces around the jaws, and the seam where the sleeve turns. Turn the sleeve back and forth by hand while brushing to expose more of the accessible area.

Avoid driving debris deeper with sharp picks, nails, or drill bits. Do not scrape the gripping faces of the jaws. Those faces need to remain clean and undamaged so they can hold a bit securely.

3. Clear dust without soaking the chuck

A gentle stream of clean, dry air may help remove remaining loose dust, but follow the tool manufacturer’s instructions and applicable safety guidance for cleaning methods. Keep the nozzle at a distance that does not force chips farther into the mechanism.

Wipe the outside of the chuck and sleeve with a clean cloth. If residue remains, use only a cleaner approved in the drill or chuck manufacturer’s current documentation. Keep liquid out of the jaw opening unless the manufacturer specifically permits that cleaning method.

4. Exercise the mechanism by hand

Open and close the empty chuck several times. The movement should become more consistent as loose dust clears. Then insert a clean, undamaged bit shank and tighten the chuck by hand according to the drill manual. Remove the bit and repeat once or twice.

If the chuck operates smoothly after this process, wipe away any remaining exterior dirt and return the drill to service.

What not to lubricate

The gripping faces of the jaws should stay dry and clean. Lubricant on those surfaces can reduce their ability to grip a bit and can attract abrasive dust. Do not coat the bit shank with oil as a routine way to prevent sticking.

Avoid spraying penetrating fluid, general-purpose water-displacing spray, grease, or oil into a keyless chuck unless the current manufacturer documentation specifically calls for a particular product and application point. A liquid that seems to free the sleeve temporarily may also carry contamination inward or leave residue where the jaws need clean contact.

If a manufacturer specifies lubrication, use only the stated lubricant, in the stated amount, and only at the stated location. The exact procedure varies by chuck design, so it is not safe to assume that advice for one drill applies to another.

Maintain a keyed chuck differently

A keyed chuck uses a toothed ring gear and a separate key. Dirt in the gear teeth, a damaged key, or the wrong key can make it seem as though the chuck is seized.

Check the key and gear teeth

Use the key intended for that chuck. A mismatched or worn key may slip, round the gear teeth, or fail to engage fully. Brush debris from the toothed ring and the key’s gear before trying again.

Engage the key fully and tighten or loosen the chuck using the method specified by the drill manufacturer. If the key skips or the gear teeth are visibly worn, replacement of the key or chuck may be the appropriate repair.

Do not substitute a wrench for the key

Pliers, adjustable wrenches, and improvised tools can damage the ring gear or chuck body. They may also create a sudden release that can injure the user or damage the drill. Use the correct key or have the chuck assessed by a repair provider.

Troubleshooting a drill chuck that will not open

A chuck may refuse to open because the bit is stuck between the jaws, debris is packed inside, or the internal mechanism has failed.

First, make sure the drill is isolated from power according to its manual. Try turning the sleeve by hand in the opening direction while keeping the bit straight. Do not bend the bit sideways to gain leverage. If the bit is damaged, seized, or cannot be released with normal hand force, stop before damaging the chuck sleeve or drill spindle.

A bit that has been run hot, overloaded, or damaged can be especially difficult to remove. The safest next step is usually to consult the current manufacturer service instructions or take the drill to a qualified repair provider. Manufacturer instructions may describe model-specific procedures; do not assume that online methods involving impacts, heat, or force are suitable for your drill.

Troubleshooting a chuck that will not tighten

If the sleeve turns but the jaws do not close evenly, inspect the chuck opening for compacted debris. Clean it as described above, then test it with a straight, clean bit shank.

Replace the bit before blaming the chuck if its shank is scored, rusty, undersized, or visibly damaged. If several suitable bits slip or the jaws remain uneven, the chuck may be worn or internally damaged. Continued use can allow a bit to loosen unexpectedly, so discontinue use until the issue is resolved.

When cleaning is not enough

Basic external cleaning is appropriate for ordinary dust and chips. It is not a cure for broken internal components. Arrange service, or consider replacing the chuck where the drill manufacturer supports that repair, when you find any of the following:

  • The jaws do not move together.
  • The chuck sleeve is cracked, badly dented, or cannot be turned by hand.
  • A keyed chuck’s teeth are rounded or the proper key will not engage.
  • The chuck repeatedly loosens during ordinary work with suitable bits.
  • A bit cannot be removed without excessive force.
  • The chuck has been exposed to severe corrosion, impact damage, or contamination that cannot be removed from accessible areas.

Chuck removal and replacement procedures vary by drill model and may involve a retaining screw or other model-specific hardware. Consult the current manufacturer manual or service documentation before attempting removal. Do not rely on a generic removal procedure, especially if it involves striking, heating, or applying force to the drill.

Simple drill chuck maintenance habits

Keep the chuck cleaner by removing dust after messy drilling work and by storing the drill in a dry place. Before inserting a bit, wipe heavy dirt from the shank. Open the jaws enough to accept the shank rather than forcing a bit into a partially closed chuck.

After drilling dusty material, open and close the empty chuck a few times by hand and brush away what is visible. Inspect bits for rust, damaged shanks, and residue before putting them away. These small steps help prevent debris from becoming packed inside the chuck.

For broader upkeep between projects, see our practical power tool maintenance schedule at /power-tool-maintenance-schedule/. If your problem involves choosing a drill accessory rather than a sticking chuck, review drill attachment compatibility at /drill-attachment-compatibility/.
